Rugged PTZ cameras to rely on — in any environment

Short lifespans are just one issue to worry about when it comes to PTZ cameras…

Substandard image quality and low-light performance. Unreliable motion control. Weak zoom capabilities. Poor connectivity. Difficult installation. Limited integrations with existing security camera systems. Slow or no customer support.

You’ve undoubtedly been left frustrated with all these common challenges.

If you’re installing a new PTZ (pan tilt zoom) camera or recommending a solution as part of a wider video surveillance camera system, you need a rugged security camera that reliably protects your customers’ assets — reducing the gnawing concern around theft to give them peace of mind and help them sleep better at night.

You need:

  • PTZ cameras that are easy to install, configure and interface with existing CCTV security systems without extensive training.

  • Exceptional performance under any conditions, including nighttime and low-light operation.
  • Reliable, rugged solutions that can withstand even the most extreme environments and surveillance applications.
  • Scalable CCTV systems that reduce overall risk by ensuring safety and compliance with industry regulations like NDAA, ONVIF, EN Standards and up to IP68 weatherproofing.

  • Comprehensive supplier support, including technical documentation and responsive after-sales service, to reduce installation and maintenance stress.

  • Demonstrable return on investment and operational benefits.

Redvision’s PTZ cameras give you all that.

Get uninterrupted monitoring for a wide range of applications with these rugged PTZ security cameras, including:

  • Busy Town & City Centres
  • Motorways & Highways
  • High-Security Sites & Perimeters
  • Commercial Areas
  • Solar & Wind Sites
  • Oil & Gas Sites
  • Power Plants
  • Large University Campuses
  • Coastal & Maritime Areas
  • Heavy Industrial Sites
  • Arenas & Stadiums

Discover the X-SERIES™ PTZ cameras…

All X-SERIES™ PTZ CCTV cameras are ONVIF and NDAA compliant, so you can be confident in their security, reliability and compatibility when specifying and installing a new solution or integrating with existing systems.

X-SERIES™ IP PTZ Cameras

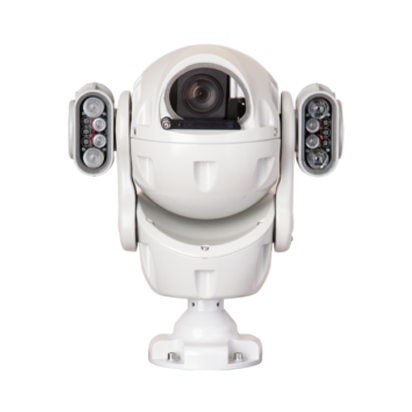

X2 COMBAT S™ Rugged Ball PTZ Camera

Specified for public spaces, commercial areas and transport networks, plus large sites like university campuses and rapid deployments at events.

The die-cast aluminium body is anodised then powder-coated to resist environmental damage and vandalism, so the unit stays serviceable in exposed sites.

A long-life silicone wiper, brushless/stepper pan-tilt motors and a balanced 4MP 30× optical zoom camera module minimise wear and service visits.

Long-life IR and white-light LEDs deliver imaging in total darkness with DORI performance up to 300m and alarm-activated white light as a visual deterrent.

3D positioning, a Web UI and click-to-track from compatible control platforms reduce configuration time and latency.

VMS control (Redvision VMS1000™ or open-platform VMS), presets/tours/tracks, motion/analytics and ONVIF support make system integration and commissioning straightforward.

High-PoE options (60W; 90W with illuminators), RJ45 base socket over a full 100m Cat-5e span and a wide range of zinc-plated, powder-coated brackets speed installation and reduce onsite work.

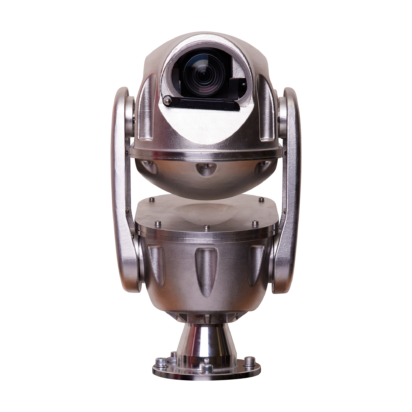

X3 STORM S™ 316 Stainless Steel PTZ Camera

Built for heavy industry, highways/motorways, construction and other demanding sites like solar/wind farms, oil and gas sites or nuclear power plants.

The investment-cast, electropolished 316 stainless-steel body resists salt-air and heavy industrial wear.

The brushless/stepper motors, long-life silicone wiper and a 4MP 30× zoom camera module are built for durability in harsh environments.

Adaptive Osram IR/white-light illumination (zoom-linked) supports IR DORI exceeding 300m for reliable low-light performance.

Redvision Web UI, 3D positioning and VMS integration (400 presets, tours, scans, tracks and auto-PTZ tracking) reduce configuration and training.

Three simultaneous streams, H.265/H.264/MJPEG, ONVIF S/G/T and optional up to 256GB SD edge storage support service streams and local recording.

Electropolished 4″ PCD/M8 mounting, stainless brackets and PoE power options (60W/90W variants) let you fit corrosion-resistant mounts and use standard Cat-5e runs.

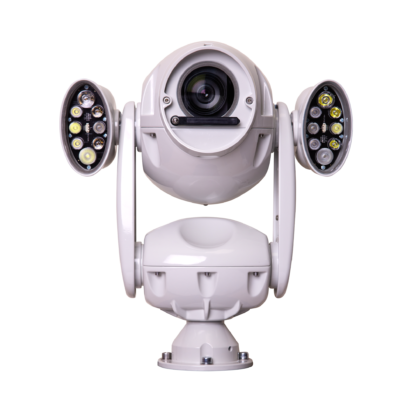

X4 COMMANDER S Rugged Ball PTZ Camera

Ideal for critical security, including town centres, ports or offshore maritime areas and high-security perimeters like prisons, military bases and utilities sites.

Pre-treated, powder-coated die-cast aluminium body with a marine finish gives a rugged PTZ camera designed to reduce repeat site visits.

Balanced mechanics, a long-life silicone wiper and brushless stepper motors paired with the 4MP 37× zoom camera module extend service intervals versus lighter-duty units.

1/1.8″ Starlight sensor (colour to 0.005 Lux) plus Osram adaptive IR/white light deliver ID-level IR detection up to 500m.

The same 3D positioning, Web UI and click-to-track workflow used across the range, plus extensive presets/tours/tracks, cut operator training and response time.

Four video streams (plus service), H.265/H.264/MJPEG, ONVIF S/G/T, optional SD edge storage and alarm I/O variants simplify commissioning and event handling.

Full range of powder-coated brackets, cantilever arms, polycarbonate window and High-PoE options (60W/90W midspan) mean you can complete pole, tower or building installs using standard Cat-5e runs and factory options.

X-SERIES™ Hybrid IP & Analogue PTZ Cameras

If you want to future-proof the CCTV system with IP features but still need compatibility with analogue today, the hybrid versions of our X-SERIES™ PTZ cameras offer the best of both worlds:

Compatible with legacy analogue DVRs and cabling as well as modern IP VMS and PoE, so you don’t have to rip out working infrastructure.

Migrate sites gradually, running analogue where it’s still needed and IP where it’s available, instead of doing a costly ‘all at once’ changeover.

Standardise on one camera model for multi-site or complex projects even if some locations are still analogue and others are IP.

If network capacity or VMS integration isn’t ready yet, the analogue output can be used immediately, with IP enabled later when the system is upgraded.

X2 COMBAT S Hybrid Rugged Ball PTZ Camera

X3 STORM S Hybrid 316 Stainless Steel PTZ Camera

X4 COMMANDER S Hybrid Rugged Ball PTZ Camera

When you buy these cameras direct from us, you get the best price, lead times and after-sales support. Speak to our team about setting up your free trade account and start taking advantage of all these benefits today.

Why should you choose Redvision’s PTZ cameras?

Manufactured in the UK to the highest specifications, the reliability and performance of these PTZ cameras have been proven — time and time again.

The X-SERIES™ PTZ CCTV cameras:

With over 25 years of industry experience, Redvision has a unique heritage in CCTV manufacturing and has consistently set the benchmark in designing and manufacturing quality security camera solutions.

This commitment to quality extends beyond our products. You also get second-to-none customer and technical support, including training sessions and a responsive after-sales service.

The mean time before failure (MTBF) rating for our cameras is 7 years — most PTZ cameras fail after 3 years.

Of the products we’ve supplied since January 2020, only 0.19% have been replaced, and our average time between the replacement request and the unit being shipped is just 1.33 working days!*

It’s this reliability, performance and dedicated after-sales support that keeps customers (ours and yours) coming back time and time again.

*Figures refer to products (over 1,000 units) supplied to coastal public-space customers since January 2020.

What’s it like to work with us?

‘Having worked with Redvision for many years the product quality has been top draw. In addition, the customer and technical support Redvision provide is second to none, providing the perfect technology partner with which to supply into BCP council.’

-Aaron Pardy, South Coast Area Manager, Chroma Vision

‘Great experience from initial order right through to deployment. The preferred choice for ruggedised cameras. Always find that the staff are willing to help and assist with any questions may have and never feels like it is too much for them and they are willing to go the extra mile. Guy is lovely to work with and makes sure that everything is dealt with in a timely manner.’

-Reliance High-Tech

‘Always get a prompt reply to any enquiries with regards to quotations and specifications of your products. When we have ordered cameras, especially larger orders, we always get accurate timelines on the production and delivery of the equipment. It’s always a pleasure to do business with your company.’

–Securitas

Looking for a rugged CCTV solution?

If you’d like a quote, more information about our PTZ cameras or to request a callback, you can contact our team via the form.

We’re happy to provide expert, personalised advice on the right CCTV camera solution for your application — at no cost to you and with no obligation to buy.

Our team will be in touch within a couple of days.
